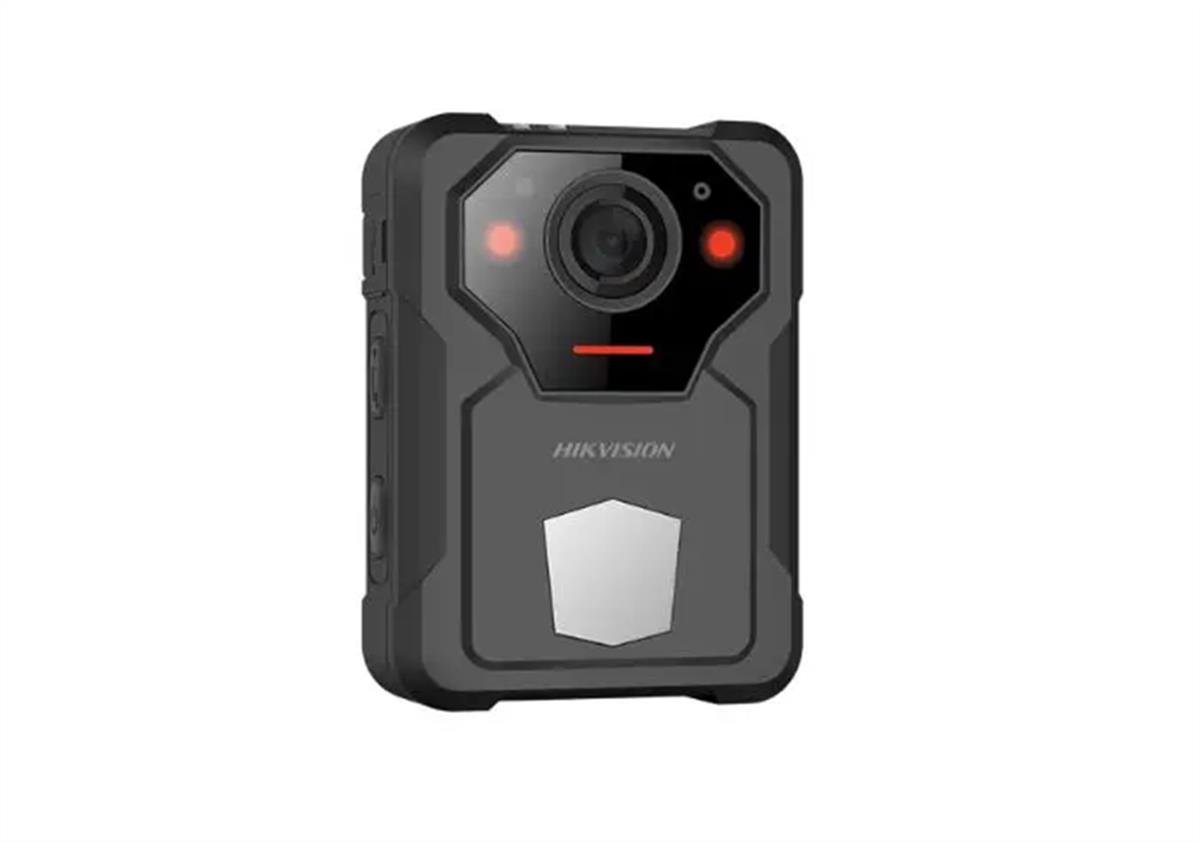

Hikvision Body Camera DS-MCW406 Profesyonel Yaka Güvenlik Kamerası
ÖZELLİKLER
Camera
Image Sensor
1/3" progressive scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.07 Lu×@ (F2.0, AGC ON), 0 Lux with supplement light
Day & Night
Switch IR Cut Filter Automatically
Zoom
4x Digital
White Light
Supported
Lens
Focal Length
2.4 mm fixed lens
FOV
Horizontal FOV: 129°
Vertical FOV: 70°
Diagonal FOV: 140°
Aperture
F2.0
Video
Video Format
PS, MP4
Pre-Record & Post- Record
Pre-record: 60 s Post-record: 60 s
Sub Stream
30 fps (1280 × 720, 720 × 576)
Video Compression
H.264, H.265
Main Stream
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576)
Audio
Audio Compression
G.711ulaw, G.711alaw, G.722.1, AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/AAC-LC)
Image Format
JPEG
Screen
Screen Size
1.77"
Resolution
128*160
Storage
RAM
128 MB
ROM
Default 32 GB, 64 GB/128 GB/256 GB optional
IR
IR Range
Up to 10 m
IR Wavelength
850 nm
Wireless Network
Wi-Fi Frequency Band
2.412 to 2.472 GHz
Wi-Fi Protocol
802.11 a/b/g/n
Positioning Mode
GPS
Network
Protocol
HTTPS, RTSP, NTP, FTP
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP5.0
Interface
USB
USB 2.0
Indicator
2 Indicator(s) for Charging/Working/Recording/Exception
Button
Power, Recording, Tag, Fn
Charging Interface
Type-C
General
Operating System
Linux
Power
5 VDC, 2.0 A, max. 10 W
Client
Hik-Connect, HikCentral Pro, HikCentral Master
MIC
Supported
Speaker
1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 87dB (10 cm)
Operating Condition
-20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Dimension
85 mm × 59 mm × 30 mm (3.4" × 2.3" × 1.2")
Weight
125 g (without mounting) (0.27 lb.)
Battery
Battery Type
Lithium-ion battery, integral
Charging Time
≤ 3 h
Battery Duration
≥ 12 h in 720p resolution
Capacity
2500 mAh
Approval
RF
EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G);
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018
CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013, MIL STD 810G
