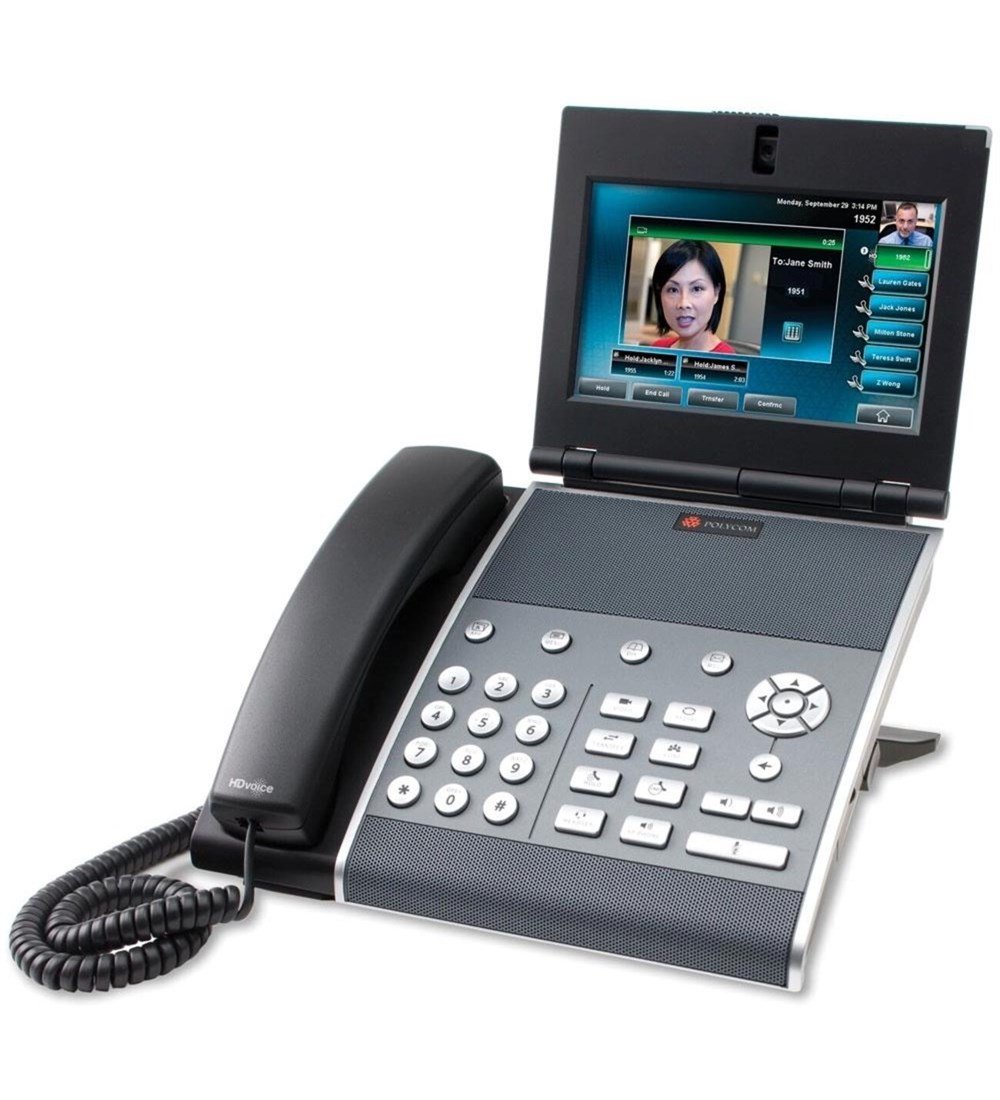

Polycom VVX 1500 Video Konferans VoIP Masaüstü Telefon
User Interface Features
• Resistive touch screen interface works with both
finger or stylus (not provided)
• 7 in TFT LCD display with adjustable screen angle
• 16:9 wide screen aspect ratio
• Screen saver and digital picture frame mode
• On-screen virtual keyboard
• Voicemail and videomail support2
• USB port for applications
• WebKit-based Browser
• Adjustable base height
• Unicode UTF-8 character support. Multilingual
user interface including Chinese, Danish, Dutch,
English (Canada/US/UK), French, German, Italian,
Japanese, Korean, Norwegian, Polish, Portuguese,
Russian, Slovenian, Spanish, and Swedish
Audio Features
• Polycom HD Voice technology delivers life-like
voice quality for each audio path-handset, the
hands-free speakerphone, and the optional
headset1
• Polycom Acoustic Clarity™ technology providing
full-duplex conversations, acoustic echo
cancellation and background noise suppression
--Type 1 compliant (IEEE 1329 full duplex)
• Frequency response – 100 Hz – 20 kHz for
handset, optional headset and hands-free
speakerphone modes
• Codecs: G.711 (A-law and μ;;;;-law), G.719,
G.729AB, G.722, G.722.1, G.722.1C
• Individual volume settings with visual feedback for
each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
Headset and Handset Compatibility
• Dedicated RJ-9 headset port
• Hearing aid compatibility
• Compliant with ADA Section 508 Subpart B
1194.23 (all)
• Hearing aid compatible (HAC) handset for
magnetic coupling to hearing aids
• Compatible with commercially-available TTY
adapter equipment
Call Handling Features2
• 6 lines (registrations)
• Shared call/bridged line appearance
• Busy Lamp Field (BLF)
• Flexible line appearance (one or more line keys can
be assigned for each line extension)
• Distinctive incoming call treatment/call waiting
• Call timer and call waiting
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way audio conferencing
• One-touch speed dial, redial
• Remote missed call notification
• Do not disturb function
• Electronic hook switch capable
Video Standards and Protocols
• H.261, H.263, H.263+ (1998), and H.264
• CIF(352x288) or SIF(352x240) resolution
transmit and receive video up to 30 fps
Camera
• 2 mega pixel camera
• 30 cm to infinity fixed focus
• Privacy Shut&&;&;;&;;;ter
• Picture in Picture for near end camera
• Full screen or window for far end camera
Open Application Platform
• WebKit enabled full browser that supports HTML,
CSS, SSL security, and JavaScript
• Supports Polycom Apps SDK and API for thirdparty
business and personal applications
• Bundled with Polycom Productivity Suite:
--Corporate Directory Access using LDAP
--Local Voice Call Recording on USB flash drive
--Visual Conference Management
Network and Provisioning
• SIP Protocol Support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• ITU H.323 support can be enabled via an H.323
Permanent Individual Phone License for the VVX
1500 (P/N 5150-16826-001)
• Two-port Gigabit Ethernet switch
--10/100/1000Base-TX across LAN and PC
ports
--Conforms to IEEE802.3-2005 (Clause 40) for
Physical Media Attachment
--Conforms to IEEE802.3-2002 (Clause 28) for
Link Partner Auto-Negotiation
• Manual or dynamic host configuration protocol
(DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS4 server-based central
provisioning for mass deployments
• Provisioning and call server redundancy supported2
• QoS Support – IEEE 802.1p/Q tagging (VLAN),
Layer 3 TOS, and DSCP
• Network Address Translation (NAT) – support for
static configuration and “Keep-Alive” SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Local configurable digit map/dial plan
• Hardware diagnostics
• Status and statistics reporting
• IPv4
• TCP
• UDP
• DNS-SRV
Bandwidth
• CIF video up to 768 kbps plus network overhead
• Customizable video call bit rates
Security
• Media encryption via SRTP
• Transport Layer Security (TLS)3
• Encrypted configuration files3
• Digest authentication
• Password login
• Support for URL syntax with password for boot
server address3
• HTTPS secure provisioning3
• Support for signed software executables3
Power
• Built-in auto sensing IEEE 802.3af Power over
Ethernet (Class 0)
• Energy-saving smart motion detector enables the
screen to go into power-save mode when no one
is in the office.
• Power efficient; consumes less than 11W when
fully active , 8W average, and 6W when in power
save mode with the LCD off
• External Universal AC Adaptor (optional, 48V
380mA DC)
Approvals
• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR 22 Class B
• VCCI Class B
• EN55024
• EN61000-3-2; EN61000-3-3
• NZ Telepermit
• Korea KCC
• China CCC
• ROHS compliant
Safety
• UL 60950-1
• CE Mark
• CAN/CSA-C22.2 No. 60950-1-03
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950-1
Operating Conditions
• Temperature: 0 to 40°C (+32 to 104°F)
• Relative Humidity: 5% to 95%, noncondensing
Storage Temperature
• -40 to +70°C (-40 to +160°F)
Polycom VVX 1500 Comes With:
• VVX 1500 console
• Handset with handset cord
• Network (LAN) cable
• Quick Start Guide
• Product registration card
Size
• 10 x 15 x 8.3 in (25 x 38 x 21 cm) (W x H x D)
Part Numbers
• 2200-18061-025 – WW PoE
Weight
• Unit weight: 5.4 lbs (2.5 kg)
Unit Box Dimensions / Weight
• 14 x 16 x 6 in
• 8.0 lbs (3.7 kg)
Master Carton Quantity
• Two
